Diff Breather Kit 4 Port - Suitable for Landcruiser 60, 70, 80, 100, 105 & 200 Series and Nissan Patrol GU GQ Y61 Y62

Help protect your 4WD drivetrain from water, mud and contaminants with this 4-port diff and drivetrain breather kit, suitable for a wide range of Toyota LandCruiser and Nissan Patrol applications.

Designed to relocate factory drivetrain breather points to a higher position in the engine bay, this kit provides four individual filtered breather points that can be used for critical drivetrain components including the:

• Front differential
• Rear differential
• Gearbox
• Transfer case

This is particularly valuable for 4WDs used for water crossings, muddy tracks, beach driving, touring and off-road use, where low-mounted factory breathers may be exposed to water and contaminants.

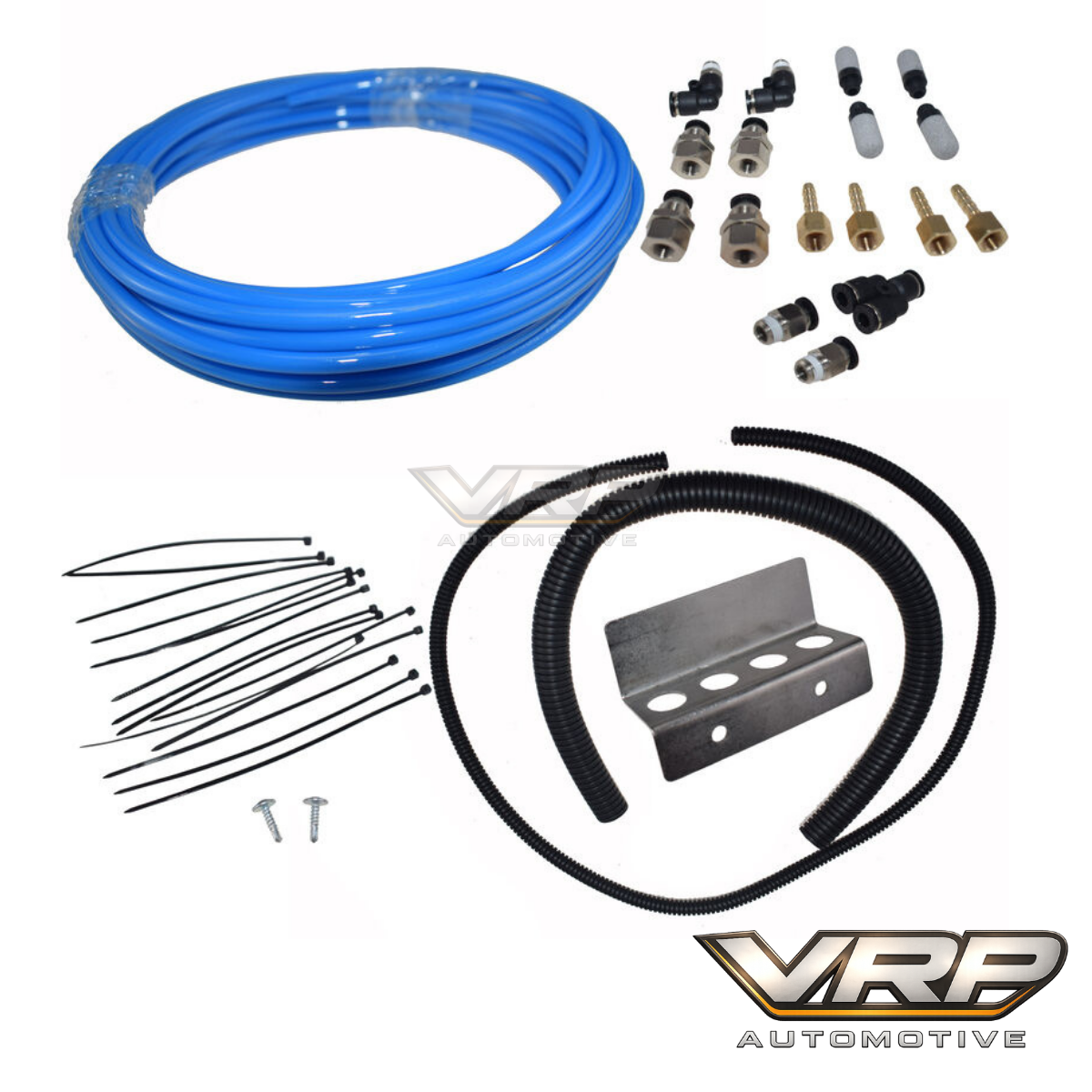

The complete kit includes a stainless steel mounting bracket, four filtered breathers, 10 metres of breather hose, sealed fittings, brass hose barbs, protective sleeves and installation hardware.

Why Install Extended Diff Breathers?

As your 4WD is driven, the oil and air inside the differentials, gearbox and transfer case increase in temperature.

The drivetrain needs to breathe as this internal temperature and pressure changes.

When a hot drivetrain component is suddenly exposed to cold water during a crossing, the air inside can cool and contract rapidly.

If the factory breather is submerged or exposed to contaminated water during this process, water and other contaminants may potentially enter the drivetrain through the breather or seals.

Relocating the breather points higher in the vehicle helps reduce this risk.

4 Port Drivetrain Protection

Unlike a basic 2-port kit designed only for the front and rear differentials, this 4-port breather system provides the capacity to extend breathers for up to four drivetrain components.

Depending on your vehicle configuration, these can include:

PORT 1, FRONT DIFFERENTIAL

PORT 2, REAR DIFFERENTIAL

PORT 3, GEARBOX / TRANSMISSION

PORT 4, TRANSFER CASE

This provides a more comprehensive solution for 4WDs regularly exposed to water, mud and demanding off-road conditions.

Toyota LandCruiser Fitment

Suitable for compatible Toyota LandCruiser applications including:

• 60 Series LandCruiser
• 70 Series LandCruiser
• 80 Series LandCruiser
• 100 Series LandCruiser
• 105 Series LandCruiser
• 200 Series LandCruiser

Also suitable for compatible Toyota 4WD applications including selected:

• Toyota Hilux
• Toyota Prado

Because breather fittings and drivetrain configurations can vary between models and production years, existing breather connections should be checked before installation.

Nissan Patrol Fitment

Suitable for compatible:

• Nissan Patrol MQ MK (160)
• Nissan Patrol  GQ / Y60
• Nissan Patrol GU / Y61
• Nissan Patrol Y62

Also suitable for selected Nissan 4WD applications using compatible breather connections.

Additional 4WD Applications

The universal-style fitting arrangement means the kit may also be suitable for selected:

• Nissan Navara
• Nissan X-Trail
• Mitsubishi Triton
• Toyota Hilux
• Toyota Prado
• Other compatible 4WD applications

Fitment should be confirmed from the vehicle's existing breather fittings before ordering.

Complete Kit Includes

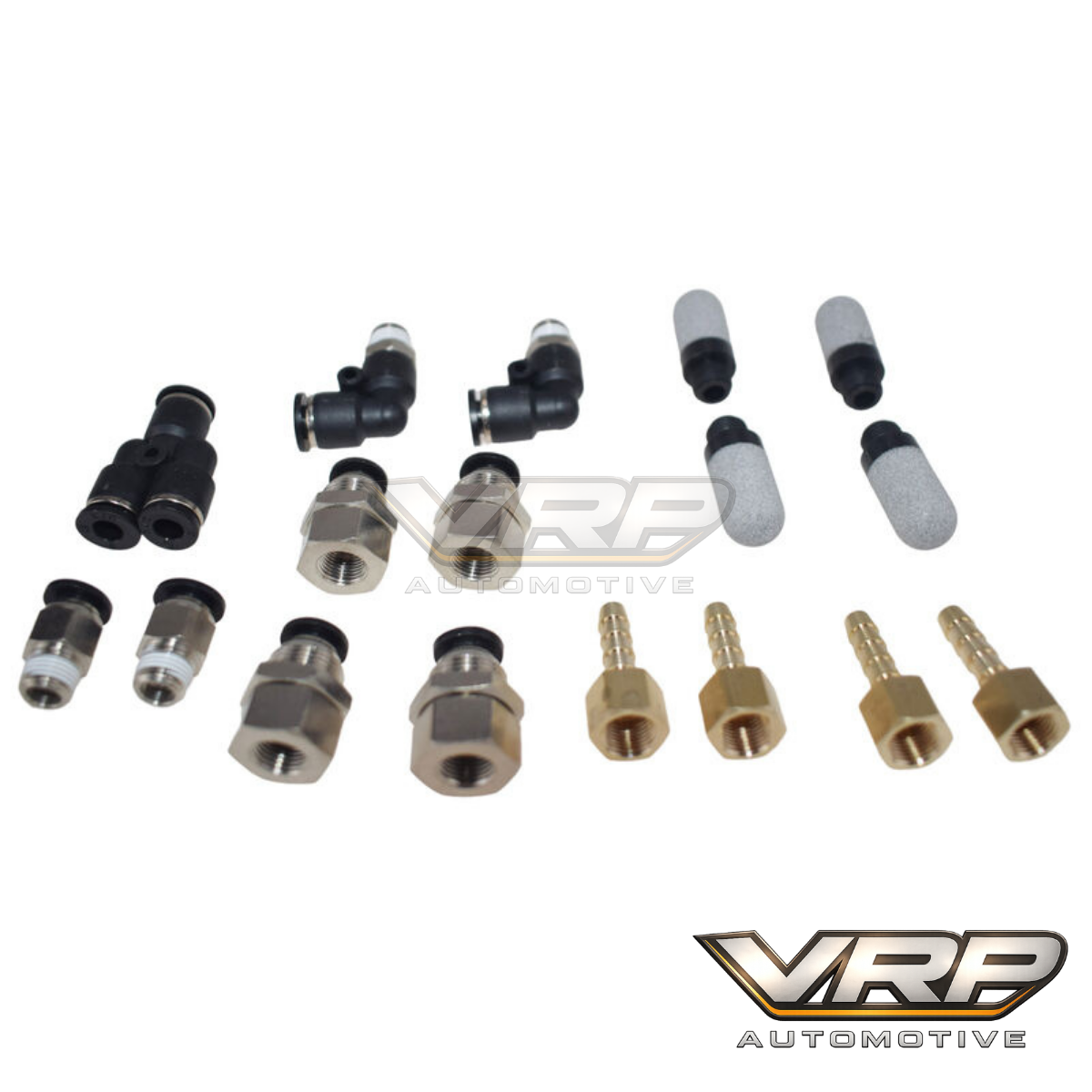

• 1 x Stainless Steel Mounting Bracket with Label
• 2 x Galvanised Self-Tapping Mounting Screws
• 4 x O-Ring Sealed Bulkhead Fittings
• 4 x Breather Filters
• 5 x O-Ring Sealed Water-Resistant Push Fittings, including Y fitting
• 4 x Brass Male Hose Barbs
• 15 x UV-Resistant Cable Ties
• 10 Metres x 6mm OD Breather Hose
• 2 x Corrugated Protective Sleeves, 1 metre combined length

Key Features

• Four individual drivetrain breather ports
• Helps protect against water, mud and contaminant ingress
• Suitable for front and rear differentials
• Can extend gearbox and transfer case breathers
• Stainless steel engine bay mounting bracket
• Four individual filtered breather outlets
• O-ring sealed bulkhead fittings
• Water-resistant push fittings
• 10 metres of breather hose included
• Protective sleeves for hose routing and securing points
• UV-resistant cable ties included
• Suitable for a wide range of Toyota and Nissan 4WDs
• Ideal for touring, water crossings and off-road use

High-Mount Engine Bay Installation

The stainless steel breather bracket is designed to be mounted in a suitable high position within the engine bay, keeping the relocated breather outlets away from the lower drivetrain area.

When selecting a mounting position, consider:

• Maximum practical mounting height
• Protection from direct water and mud
• Exhaust and engine heat
• Moving components
• Hose routing
• Suspension and drivetrain movement
• Ease of inspection and maintenance

Breather hose should be routed carefully to avoid kinks, excessive tension, sharp edges and high-temperature components.

Product Specifications

Product: 4-Port Diff / Drivetrain Breather Kit
Ports: 4
Breather Filters: 4
Hose: 10 metres
Hose Size: 6mm OD
Bracket: Stainless Steel
Bulkhead Fittings: O-Ring Sealed
Push Fittings: O-Ring Sealed / Water Resistant
Primary Application: 4WD Drivetrain Breather Extension
Installation Location: High Engine Bay Position
Condition: New

Ideal for 4WD & Touring Applications

This kit is particularly suited to vehicles used for:

• Water crossings
• Mud driving
• Beach driving
• Remote touring
• Camping and overlanding
• Farm and work use
• Off-road tracks
• General 4WD touring

Even vehicles that only occasionally encounter water can benefit from having drivetrain breathers relocated away from vulnerable low-mounted positions.

Important Fitment Information

Drivetrain and breather configurations can vary between vehicle models, years, transmissions, differentials and previous modifications.

Before installation, identify the existing breather locations and confirm the required fittings for your particular vehicle.

Additional adapters or vehicle-specific modifications may be required for some applications.

The kit does not increase the manufacturer's rated vehicle wading depth and should not be considered a guarantee against water entering the drivetrain.

Installation

Each required factory breather is extended using the supplied hose and fittings, with the hoses routed to the high-mounted breather bracket.

Take particular care to leave sufficient hose length for axle and suspension movement.

After installation:

• Check all fittings are correctly secured
• Ensure hoses are not kinked
• Keep hoses away from exhaust components
• Check clearance through full suspension movement
• Confirm the breathers remain clean and unobstructed
• Periodically inspect the system during routine vehicle maintenance

If you're unsure about installation or vehicle compatibility, installation by a suitably experienced 4WD workshop is recommended.
