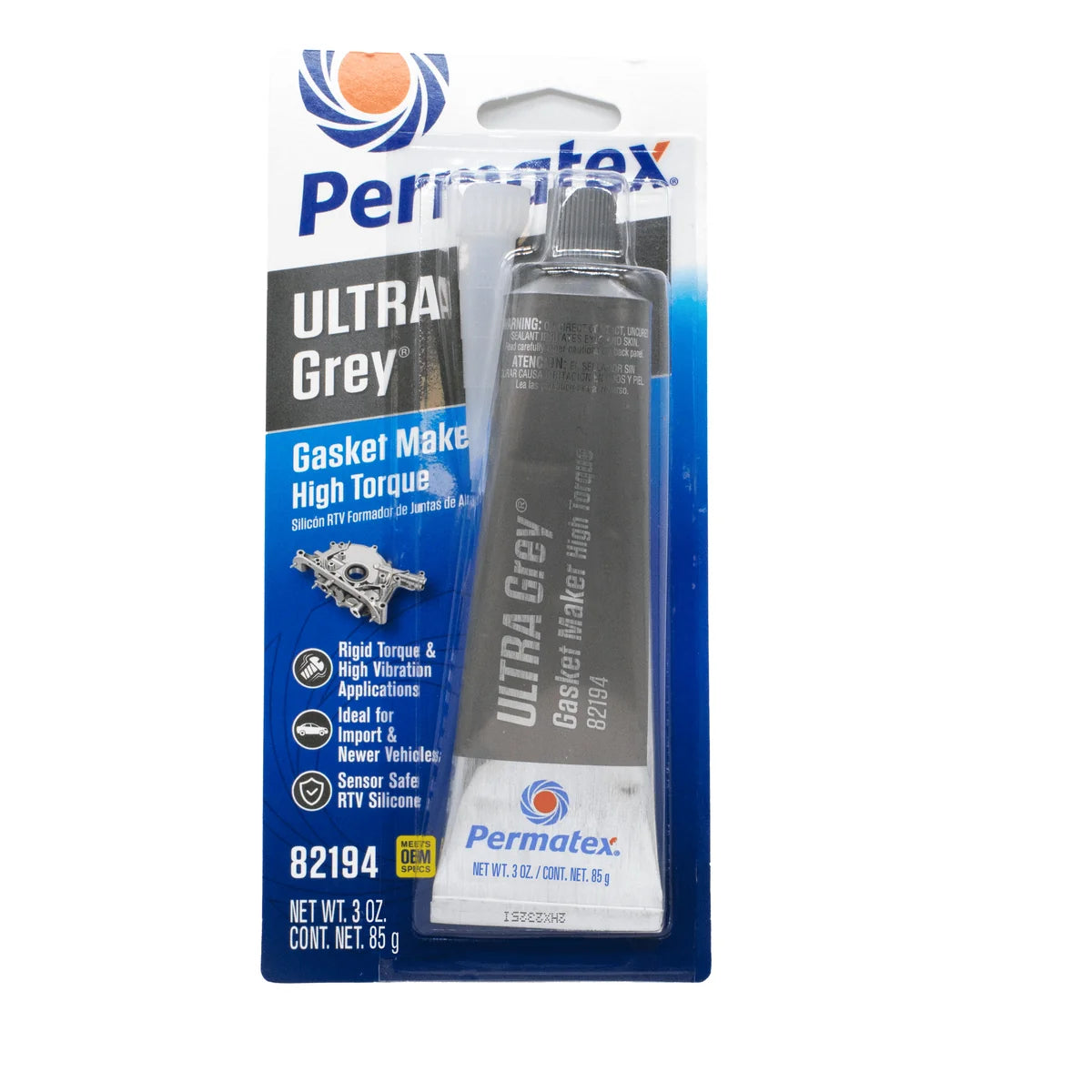

Permatex 82194 Ultra Grey RTV Silicone Gasket Maker 85g / 3oz

Permatex 82194 Ultra Grey RTV Silicone Gasket Maker is a premium, OEM-specified gasket maker engineered for high torque and high vibration automotive applications.

Designed for assemblies with closely spaced bolt patterns and higher clamping loads, Ultra Grey cures to form a tough, flexible silicone rubber gasket that resists vibration, thermal cycling, oil and water-glycol mixtures without hardening, shrinking or cracking.

Its sensor-safe, low-odour and non-corrosive formulation makes it an excellent choice for modern and classic automotive repairs, engine builds, restorations and professional workshop use.

Built for High Torque & High Vibration

Permatex Ultra Grey is specifically formulated for applications where rigidity, clamping load and vibration resistance are important.

Key benefits include:

• Designed for high torque and high vibration applications
• Excellent resistance to vibration and thermal cycling
• High load resistance
• Excellent oil and water-glycol resistance
• Sensor-safe formulation
• Non-corrosive and low odour
• OEM specified
• Ideal for closely spaced bolt patterns
• Replaces many conventional cut gaskets
• Can be used as a gasket maker or gasket dressing
• Remains flexible after curing

Recommended Automotive Applications

Permatex Ultra Grey is particularly suited to:

• Water pumps
• Thermostat housings
• Valve covers
• Intake manifold end seals
• Timing covers
• Other high torque and high vibration flange applications

It is particularly useful where components have closely spaced fasteners and require a gasket capable of maintaining a reliable seal under higher clamping loads.

Technical Specifications

Brand: Permatex
Product: Ultra Grey RTV Silicone Gasket Maker
Part Number: 82194
Colour: Grey
Size: 3 oz / approximately 85g
Type: RTV Silicone Gasket Maker
Sensor Safe: Yes
Full Cure: Approximately 24 hours

Application

For best results, thoroughly remove old gasket material and ensure mating surfaces are clean and dry before application.

Apply a continuous, even bead of Ultra Grey to one surface, surrounding all bolt holes. Assemble components immediately while the silicone is still wet.

Finger tighten until material begins to squeeze around the flange. Allow approximately one hour before tightening an additional 1/4 to 1/2 turn.

Under normal conditions, the silicone will fully cure in approximately 24 hours. Additional curing time may be required in cold or very dry conditions.

Important Application Notes

Permatex Ultra Grey is designed for formed-in-place gasket applications and can also be used as a dressing with suitable pre-cut gaskets.

Not recommended for use as a cylinder head gasket or head gasket sealant.

Not recommended for components in direct contact with gasoline.

Always confirm product suitability for the specific component and follow the manufacturer's application instructions.
